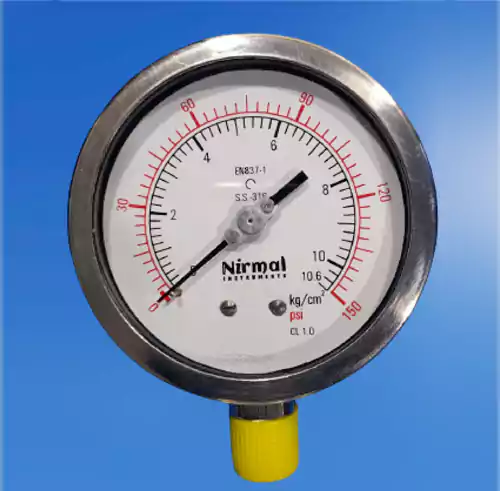

Nirmay Pressure Gauges are designed taking industrial applications into focus. A strong body with a sturdy construction makes it ideal for use for a long term
| TECHNICAL SPECIFICATIONS | |||
| Dial Size | 100, 150, 200, 250 mm | ||
| Range | 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, 100, 250, 400, 600 kg/cm2 & Vacuum Range 0-760 mmHg & Compound Ranges | ||
| Units | kg/cm2, psi, bar | ||
| Accuracy | +/-1% FSD | ||
| Over range | 130% FS | ||
| Connection | 3/8", 1/2" BSP / NPT, M20 X 1.5 | ||
| Body MOC | SS304, Weather proof, Dust Proof | ||
| Dial | Aluminum, Black graduation on white background | ||
| Protection | IP65 / IP67 | ||
| Mech. Shock "G" Value | 15 G, 6 msec | ||
| Storage Temperature | -20oC to 60oC | ||
| Window | Shatterproof Glass | ||
| System | SS316 Bourdon with SS316 Socket | ||
| Movement | SS304 | ||
| Zero Adjustment | Micrometer Pointer, Zero Adjustable Type | ||
| Blow-off Disc | Provided at back of case | ||
| Mounting | Direct Moving Bottom Entry, Surface Mounting Bottom Entry, Flush Mounting Back Connection with Clamps, Panel Mounting Back Entry | ||
| Option | Glycerin Filled, Silicon Filled | ||
| Accessories | Syphone Tube, Snuber, Ball Valve, Needle Valve | ||
